0536250874
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

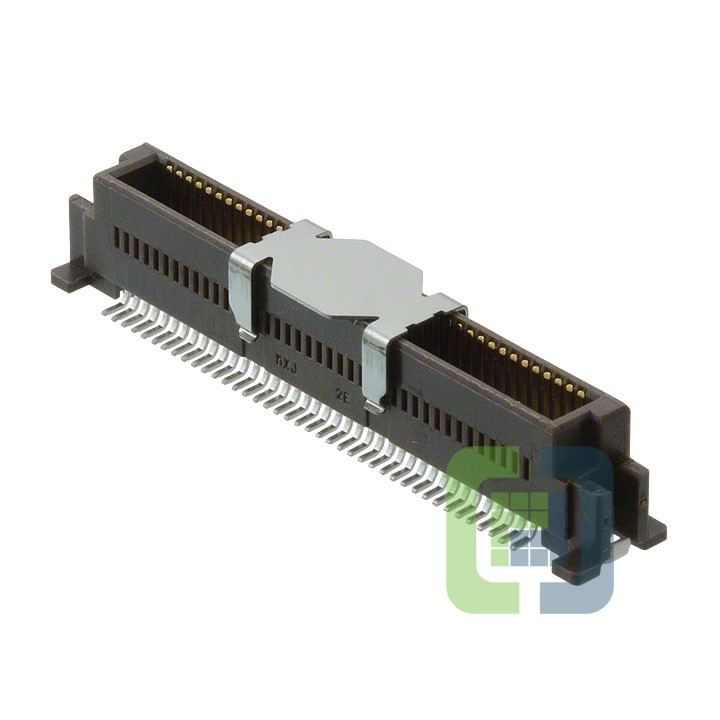

- DescriptionCONN PLUG 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0536250874 Datasheet
-
ECAD Model
- Share
In Stock: 2,067
Can ship immediately
Pricing:
- 1$5.51
- 1,000$3.19812
- 2,000$3.08784
- 3,000$2.97756
Quote It
Technical Details
- Series:SlimStack 53625
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:7mm, 13mm
- Height Above Board:0.236" (6.00mm)
