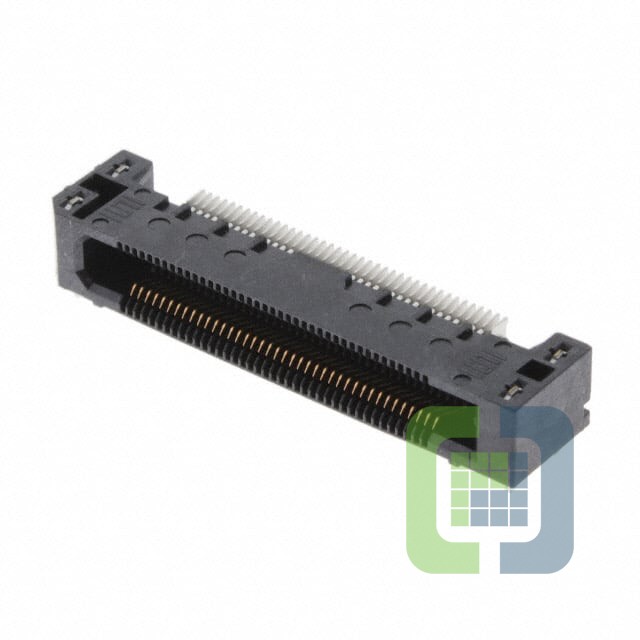

ERF5-040-01-L-D-RA-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 80POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERF5-040-01-L-D-RA-TR Datasheet
-
ECAD Model
- Share
In Stock: 281
Can ship immediately
Pricing:
- 1$9.02
- 300$6.468
- 600$6.076
- 900$5.684
- 1,500$5.2136
Quote It
Technical Details
- Series:Edge Rate™ ERF5
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Center Strip Contacts
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:0.187" (4.75mm)
