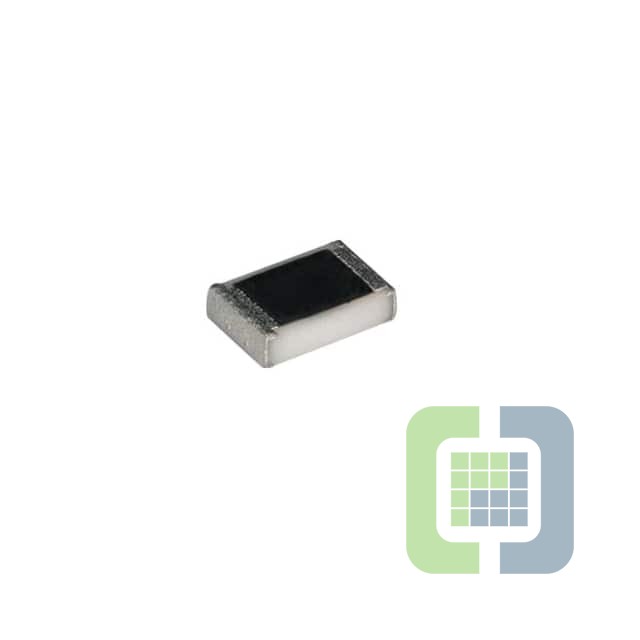

ERJ-H3GJ561V
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 560 OHM 5% 1/8W 0603
- CategoryChip Resistor - Surface Mount
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$0.15
Quote It
Technical Details
- Series:ERJ-H3G
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:560 Ohms
- Tolerance:±5%
- Power (Watts):0.125W, 1/8W
- Composition:Thick Film
- Features:Automotive AEC-Q200
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:AEC-Q200
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
