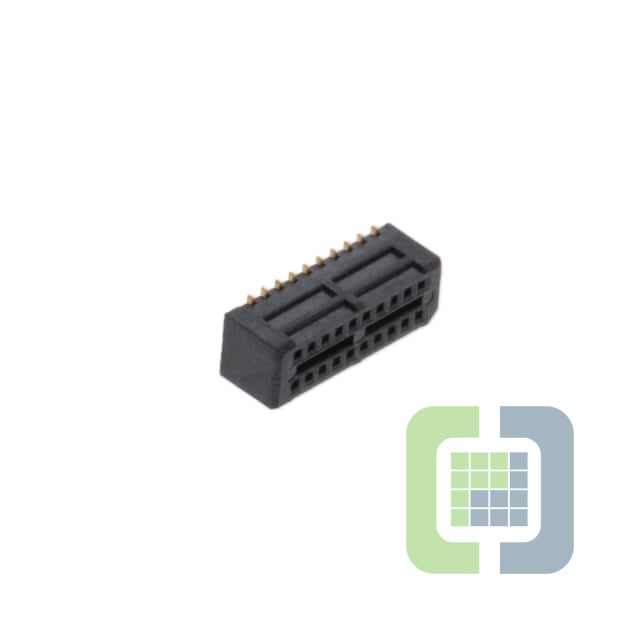

SEMS-110-02-03.0-G-D-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS 0.031 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SEMS-110-02-03.0-G-D-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 1,175
Can ship immediately
Pricing:
- 1$6.02
- 1,225$3.20025
- 2,450$3.07475
Quote It
Technical Details
- Series:Tiger Eye™ SEMS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:20
- Number of Positions Loaded:All
- Pitch - Mating:0.031" (0.80mm)
- Number of Rows:2
- Row Spacing - Mating:-
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.177" (4.50mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Gold
- Mated Stacking Heights:6mm
- Ingress Protection:-
- Features:Pick and Place
- Current Rating (Amps):2.6A per Contact
- Voltage Rating:235VAC, 330VDC
