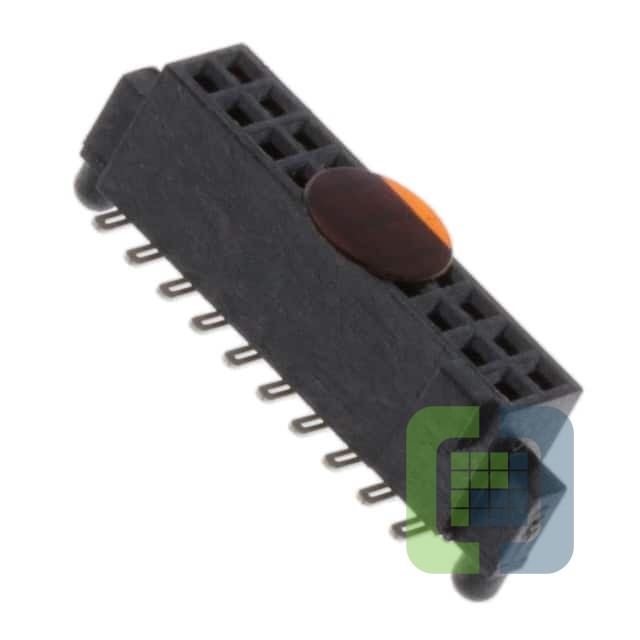

SFC-110-T2-L-D-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS 0.05 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SFC-110-T2-L-D-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$4.05
- 675$2.268
- 1,350$2.106
- 2,025$2.0655
- 3,375$2.025
Quote It
Technical Details
- Series:Tiger Eye™ SFC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:20
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.180" (4.57mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Guide, Pick and Place
- Current Rating (Amps):3.1A per Contact
- Voltage Rating:350VAC
