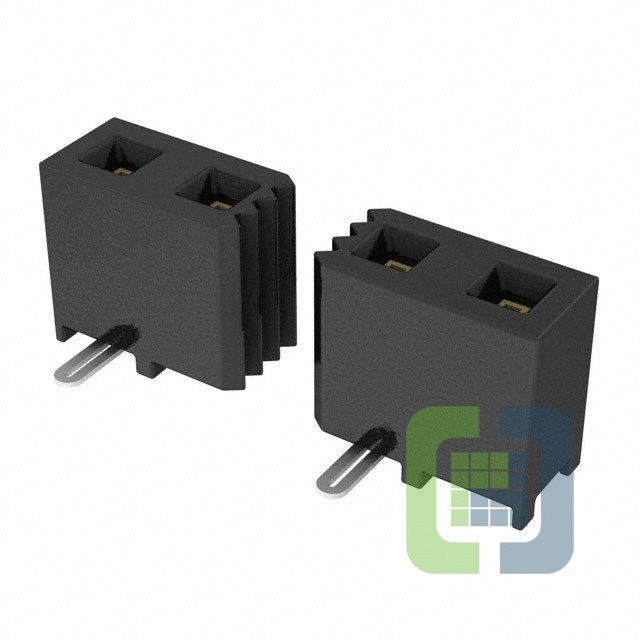

SMM-110-02-L-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 10POS 0.079 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SMM-110-02-L-S Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$2.63
- 10$2.17744
- 100$1.63278
- 500$1.36065
- 1,000$1.20644
- 5,000$1.13387
Quote It
Technical Details
- Series:Tiger Eye™ SMM
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:10
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.140" (3.56mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3.2A per Contact
- Voltage Rating:350VAC
