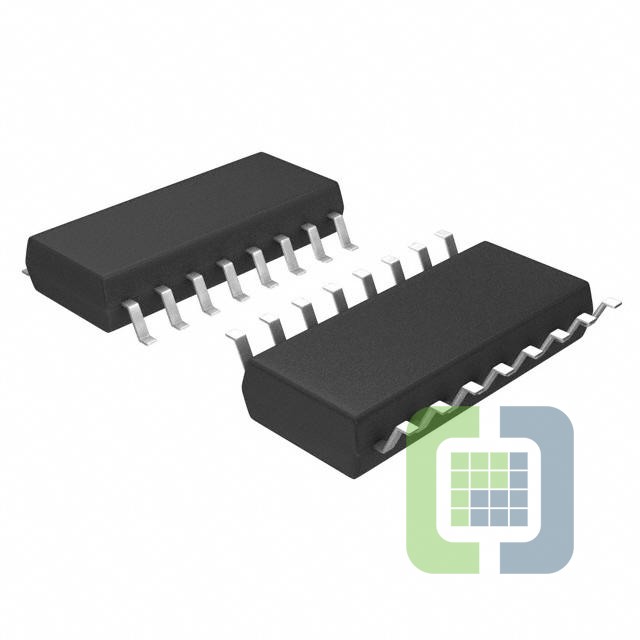

MM74HC595SJ
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSERIAL IN PARALLEL OUT, HC/UH SE
- CategoryLogic - Shift Registers
- Datasheet MM74HC595SJ Datasheet
-
ECAD Model
- Share
In Stock: 27,327
Can ship immediately
Pricing:
- 1$0.56
Quote It
Technical Details
- Series:74HC
- Package:Bulk
- Part Status:Active
- Logic Type:Shift Register
- Output Type:Tri-State
- Number of Elements:1
- Number of Bits per Element:8
- Function:Serial to Parallel, Serial
- Voltage - Supply:2V ~ 6V
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
