XMLCTW-A2-0000-00C3AAC03
Cree
- Lifecycle status Active
- RoHS RoHS Compliant

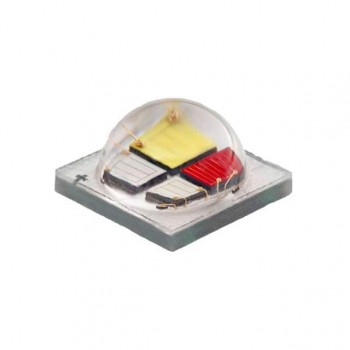

- DescriptionLED XML RGBW SMD
- CategoryLED Lighting - Color
- Datasheet XMLCTW-A2-0000-00C3AAC03 Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$8.84316
- 250$8.84316
Quote It
Technical Details
- Series:XLamp® XM-L
- Package:Tape & Reel (TR)
- Part Status:Active
- Color:Red, Green, Blue, White - Cool (RGBW)
- Wavelength:625nm Red, 528nm Green, 458nm Blue, 6850K White
- Current - Test:350mA Red, 350mA Green, 350mA Blue, 350mA White
- Voltage - Forward (Vf) (Typ):2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White
- Lumens/Watt @ Current - Test:85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White
- Current - Max:1A Red, 1A Blue, 1A Green, 1A White
- Luminous Flux @ Current/Temperature:67lm Red, 101lm Green, 27lm Blue, 110lm White
- Temperature - Test:25°C
- Viewing Angle:130°
- Mounting Type:Surface Mount
- Package / Case:2020 (5050 Metric)
- Supplier Device Package:SMD
- Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
- Height - Seated (Max):0.124" (3.15mm)
