ELG-100-24B-3Y

MEAN WELL
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionO/P +24V4A
  • CategoryLED Drivers
  • ECAD Model
  • Share
In Stock: 106

Can ship immediately

Pricing:
  • 1$36.94

Quote It

Technical Details

  • Series:ELG-100 (100W)
  • Package:Box
  • Part Status:Active
  • Type:Constant Current, Voltage
  • Topology:AC DC Converter
  • Number of Outputs:1
  • Voltage - Input (Min):100VAC
  • Voltage - Input (Max):305VAC
  • Voltage - Output:24V
  • Current - Output (Max):4A
  • Power (Watts):96 W



  • Voltage - Isolation:3.75 kV
  • Dimming:Analog, PWM
  • Features:OCP, OTP, OVP, SCP
  • Ratings:IP67
  • Operating Temperature:-40°C ~ 90°C
  • Efficiency:88%
  • Termination Style:Wire Leads
  • Size / Dimension:6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm)
  • Approval Agency:CB, CCC, CE, cURus, EAC, ENEC, RCM
  • Standard Number:-

Related Products


NPF-90D-20BE

LED DRIVER CC AC/DC

  • 1: $37.27264

HLG-40H-54B

LED DVR CCCV ACDC 32.4-54V 750MA

HLG-40H-54B Datasheet
  • 1: $37.58000
  • 10: $34.00484
  • 25: $32.66254

NPF-90D-12

LED DRVR CC AC/DC 7.2-12V 7.5A

NPF-90D-12 Datasheet
  • 1: $37.76111
  • 10: $34.09556
  • 25: $32.72275

NPF-90D-15

LED DRIVER CC AC/DC 9-15V 6A

NPF-90D-15 Datasheet
  • 1: $37.76111
  • 10: $34.09556
  • 25: $32.72275

NPF-90D-20

LED DRIVER CC AC/DC 12-20V 4.5A

NPF-90D-20 Datasheet
  • 1: $37.76111
  • 10: $34.09556
  • 25: $32.72275

NPF-90D-24

LED DRVR CC AC/DC 14.4-24V 3.75A

NPF-90D-24 Datasheet
  • 1: $37.76111
  • 10: $34.09556
  • 25: $32.72275

NPF-90D-42

LED DRVR CC AC/DC 25.2-42V 2.15A

NPF-90D-42 Datasheet
  • 1: $37.76111
  • 10: $34.09556
  • 25: $32.72275

NPF-90D-48

LED DRVR CC AC/DC 28.8-48V 1.88A

NPF-90D-48 Datasheet
  • 1: $37.76111
  • 10: $34.09556
  • 25: $32.72275

PWM-90-36

LED DRIVER CV AC/DC 36V 2.5A

PWM-90-36 Datasheet
  • 1: $37.76111
  • 10: $34.09556
  • 25: $32.72275

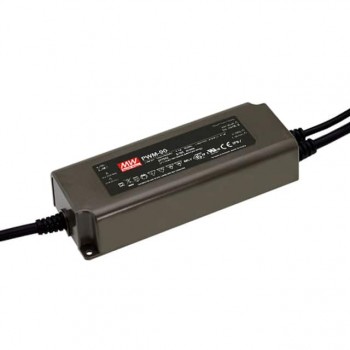

PWM-90-48
