870135375006
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant

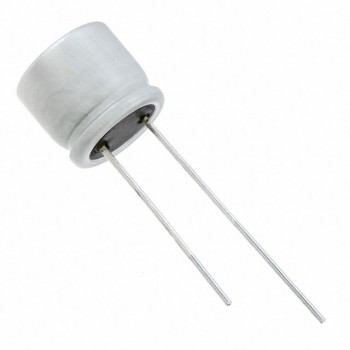

- DescriptionCAP ALUM POLY 390UF 20% 16V T/H
- CategoryAluminum - Polymer Capacitors
-
ECAD Model
- Share
In Stock: 171
Can ship immediately
Pricing:
- 1$0.924
- 600$0.924
- 1,200$0.88288
Quote It
Technical Details
- Series:WCAP-PTHT
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Type:Polymer
- Capacitance:390 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):10mOhm
- Lifetime @ Temp.:2000 Hrs @ 125°C
- Operating Temperature:-55°C ~ 125°C
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:96.45 mA @ 120 Hz
- Ripple Current @ High Frequency:1.929 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.551" (14.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
