CD74HCT564M
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC FF D-TYPE SNGL 8BIT 20SOIC
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 361
Can ship immediately
Pricing:
- 1$1.78
- 10$1.59776
- 25$1.50707
- 100$1.28414
- 500$1.05503
- 1,000$0.87416
- 2,500$0.81387
- 5,000$0.78373
Quote It
Technical Details
- Series:74HCT
- Package:Tube
- Part Status:Active
- Function:Standard
- Type:D-Type
- Output Type:Tri-State, Inverted
- Number of Elements:1
- Number of Bits per Element:8
- Clock Frequency:50 MHz
- Max Propagation Delay @ V, Max CL:14ns @ 5V, 15pF
- Trigger Type:Positive Edge
- Current - Output High, Low:6mA, 6mA
- Voltage - Supply:4.5V ~ 5.5V
- Current - Quiescent (Iq):8 µA
- Input Capacitance:10 pF
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:20-SOIC
- Package / Case:20-SOIC (0.295", 7.50mm Width)
Related Products
IC FF D-TYPE DUAL 8BIT 48SSOP
- 1: $1.79000
- 1000: $0.82795
IC FF D-TYPE DUAL 1BIT 14SOIC
- 1: $2.43000
- 10: $2.18488
- 50: $2.06136
IC FF D-TYPE DUAL 8BIT 56BGA
- 1: $2.52000
- 1000: $1.12520
IC FF D-TYPE SNGL 8BIT 20TSSOP
- 1: $2.59000
- 2000: $1.11780
- 6000: $1.07640
SN74LVC74A DUAL POSITIVE-EDGE-TR
- 1: $0.13000
- 3000: $0.13000
D FLIP-FLOP, AHC/VHC/H/U/V SERIE
- 1: $0.15000
D FLIP-FLOP, LV/LV-A/LVX/H SERIE
- 1: $0.17000

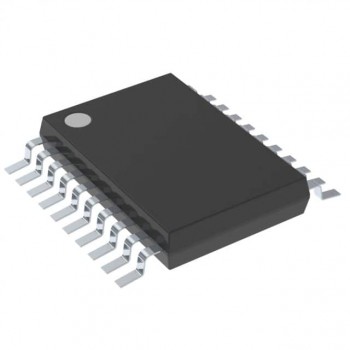

SN74AHC574 OCTAL EDGE-TRIGGERED
