DG453EY-T1-E3

Vishay / Siliconix
In Stock: 186

Can ship immediately

Pricing:
  • 1$2.175
  • 2,500$2.05451

Quote It

Technical Details

  • Series:-
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Switch Circuit:SPST - NO/NC
  • Multiplexer/Demultiplexer Circuit:1:1
  • Number of Circuits:4
  • On-State Resistance (Max):5.3Ohm
  • Channel-to-Channel Matching (ΔRon):120mOhm
  • Voltage - Supply, Single (V+):12V
  • Voltage - Supply, Dual (V±):±5V ~ 15V



  • Switch Time (Ton, Toff) (Max):118ns, 97ns
  • -3db Bandwidth:-
  • Charge Injection:22pC
  • Channel Capacitance (CS(off), CD(off)):31pf, 34pF
  • Current - Leakage (IS(off)) (Max):500pA
  • Crosstalk:-85dB @ 1MHz
  • Operating Temperature:-40°C ~ 125°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package:16-SOIC

Related Products


DG454EY-T1-E3

IC SWITCH QUAD SPST 16SOIC

DG454EY-T1-E3 Datasheet
  • 1: $4.07000
  • 2500: $1.85555
  • 5000: $1.78580

MAX318ESA+T

IC SWITCH SPST 8SOIC

MAX318ESA+T Datasheet
  • 1: $2.18400
  • 2500: $1.92593

MAX4630ESD+

IC SW QUAD ANLG CMOS SPST 14SOIC

  • 1: $2.21960

MAX4653EUE+T

IC SWITCH QUAD SPST 16TSSOP

MAX4653EUE+T Datasheet
  • 1: $2.22300
  • 2500: $1.96204

MAX4652EUE+T

IC SWITCH QUAD SPST 16TSSOP

MAX4652EUE+T Datasheet
  • 1: $2.22300
  • 2500: $1.96204

MAX4651ESE+T

IC SWITCH QUAD SPST 16SOIC

MAX4651ESE+T Datasheet
  • 1: $2.22300
  • 2500: $1.96204

MAX4651EUE+T

IC SWITCH QUAD SPST 16TSSOP

MAX4651EUE+T Datasheet
  • 1: $2.22300
  • 2500: $1.96204

MAX4652ESE+T

IC SWITCH QUAD SPST 16SOIC

MAX4652ESE+T Datasheet
  • 1: $2.22300
  • 2500: $1.96204

MAX4737ETE+T

4.5 OHM QUAD SPST ANALOG SWITCHE

  • 1: $2.25000

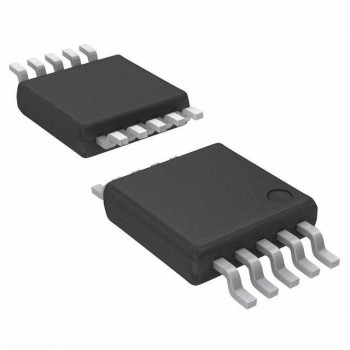

MAX4685EUB+T
