In Stock: 123

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Tape & Reel (TR)
  • Part Status:Obsolete
  • Switch Circuit:SPST - NO
  • Multiplexer/Demultiplexer Circuit:1:1
  • Number of Circuits:2
  • On-State Resistance (Max):20Ohm
  • Channel-to-Channel Matching (ΔRon):-
  • Voltage - Supply, Single (V+):2V ~ 5.5V
  • Voltage - Supply, Dual (V±):-



  • Switch Time (Ton, Toff) (Max):8.5ns, 20ns
  • -3db Bandwidth:200MHz
  • Charge Injection:-
  • Channel Capacitance (CS(off), CD(off)):0.5pF, 5pF
  • Current - Leakage (IS(off)) (Max):-
  • Crosstalk:-60dB @ MkHz
  • Operating Temperature:-40°C ~ 85°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
  • Supplier Device Package:8-MSOPB

Related Products


DG9236DN-T1-E4

IC ANLG SWITCH DUAL SPST 10QFN

DG9236DN-T1-E4 Datasheet

Call for price


DG9252EN-T1-E4

IC MULTIPLEXER DUAL 4CH 16QFN

DG9252EN-T1-E4 Datasheet

Call for price


DG9253EN-T1-E4

IC MULTIPLEXER TRPL 2-CH 16QFN

DG9253EN-T1-E4 Datasheet

Call for price


DG2538DQ-T1-GE3

IC SWITCH SPST 4.5 OHM 10MSOP

DG2538DQ-T1-GE3 Datasheet

Call for price


DG2539DQ-T1-GE3

IC SWITCH SPST 4.5 OHM 10MSOP

DG2539DQ-T1-GE3 Datasheet

Call for price


DG9251EN-T1-E4

IC MUX 8:1 482 OHM 16MINIQFN

DG9251EN-T1-E4 Datasheet

Call for price


STG4260BJR

IC SWITCH DUAL SPDT 12FLIPCHIP

STG4260BJR Datasheet

Call for price

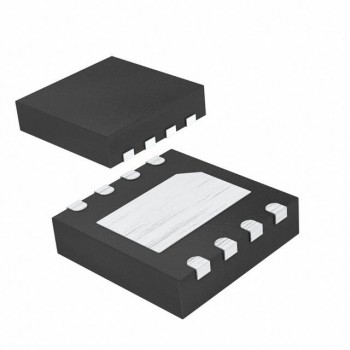

MAX14759ETA+
