10343CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

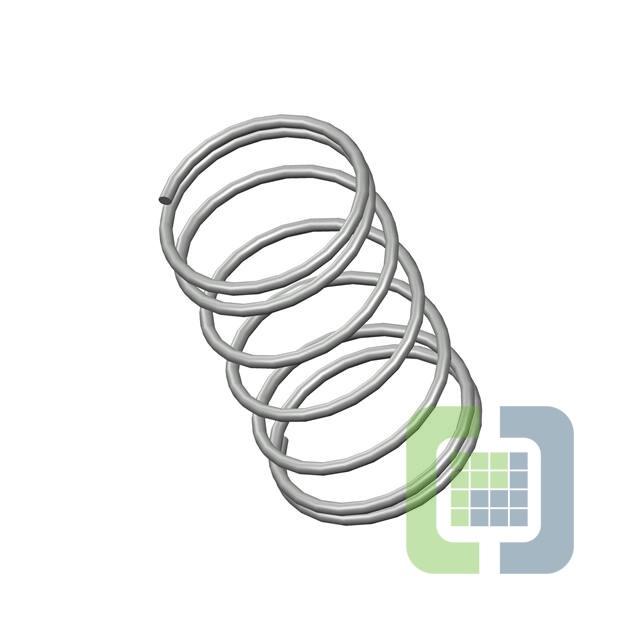

- DescriptionCOMP O= .562,L= 1.00,W= .034
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 8,869
Can ship immediately
Pricing:
- 1$2.73
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.034" (0.86mm)
- Diameter - Outside:0.562" (14.27mm)
- Diameter - Inside:0.494" (12.55mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.000" (25.40mm)
- Max Load:-
- Rate:2.6 lbs/in
- End Style:Closed
- Finish:Zinc
