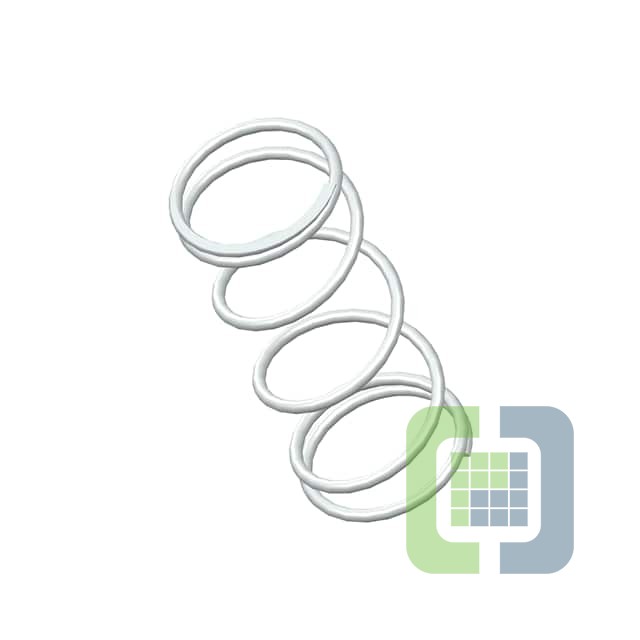

B1-16CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .296,L= .72,W= .022
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 308
Can ship immediately
Pricing:
- 1$2.75
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.022" (0.56mm)
- Diameter - Outside:0.296" (7.52mm)
- Diameter - Inside:0.252" (6.40mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.720" (18.29mm)
- Max Load:-
- Rate:3.6 lbs/in
- End Style:Closed & Ground
- Finish:None
