2803CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

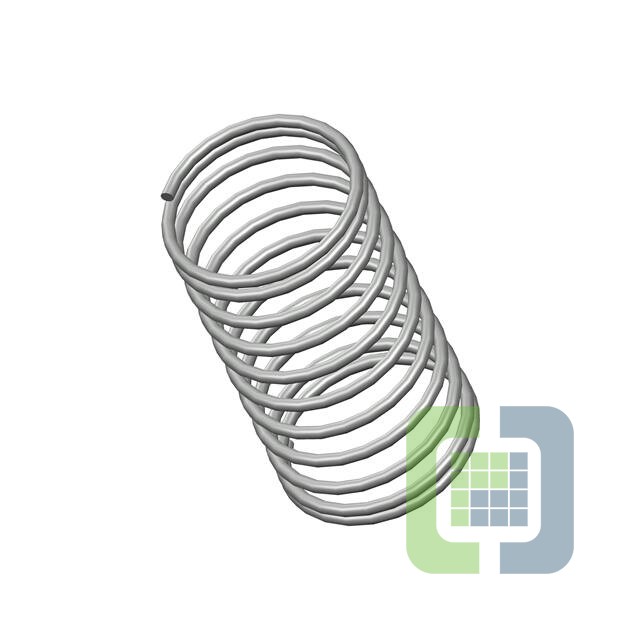

- DescriptionCOMP O= .609,L= 1.16,W= .038
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,406
Can ship immediately
Pricing:
- 1$2.76
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.038" (0.97mm)
- Diameter - Outside:0.609" (15.47mm)
- Diameter - Inside:0.533" (13.54mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.160" (29.46mm)
- Max Load:-
- Rate:1.8 lbs/in
- End Style:Closed
- Finish:Zinc
