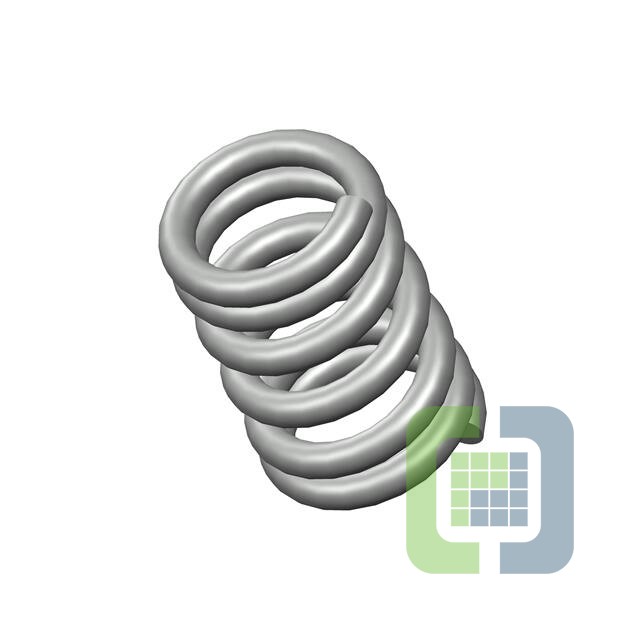

A-36CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .437,L= .75,W= .070
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 6,160
Can ship immediately
Pricing:
- 1$2.84
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.070" (1.78mm)
- Diameter - Outside:0.437" (11.10mm)
- Diameter - Inside:0.297" (7.54mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.750" (19.05mm)
- Max Load:-
- Rate:173.0 lbs/in
- End Style:Closed
- Finish:Zinc
