S-1284CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

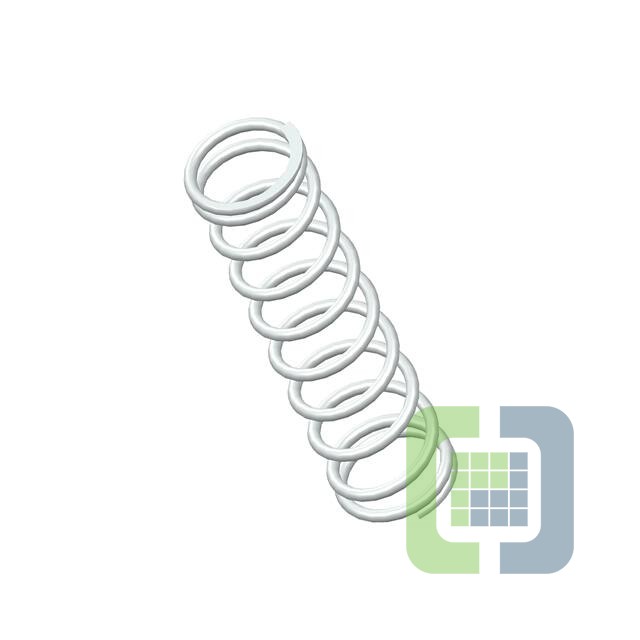

- DescriptionCOMP O= .360,L= 1.44,W= .037
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 532
Can ship immediately
Pricing:
- 1$2.86
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.037" (0.94mm)
- Diameter - Outside:0.360" (9.14mm)
- Diameter - Inside:0.286" (7.26mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.440" (36.58mm)
- Max Load:-
- Rate:8.5 lbs/in
- End Style:Closed & Ground
- Finish:None
