A9-68CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

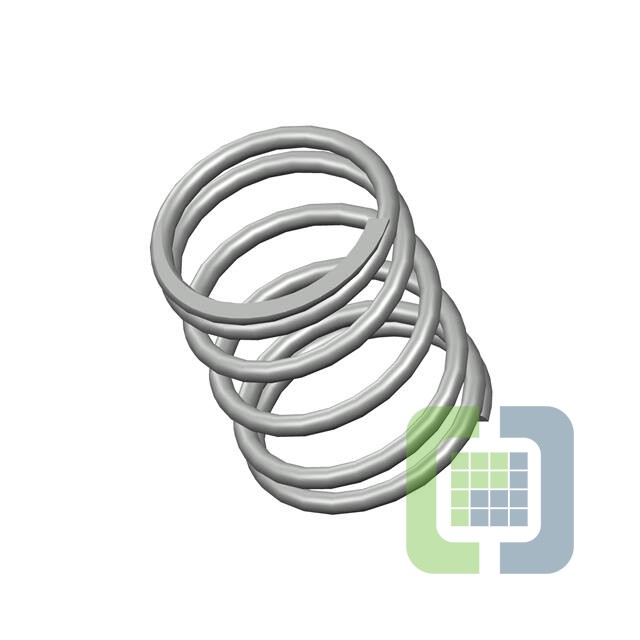

- DescriptionCOMP O= .546,L= .69,W= .047
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 481
Can ship immediately
Pricing:
- 1$2.87
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.047" (1.19mm)
- Diameter - Outside:0.546" (13.87mm)
- Diameter - Inside:0.452" (11.48mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.690" (17.53mm)
- Max Load:-
- Rate:14.0 lbs/in
- End Style:Closed & Ground
- Finish:None
