12026CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

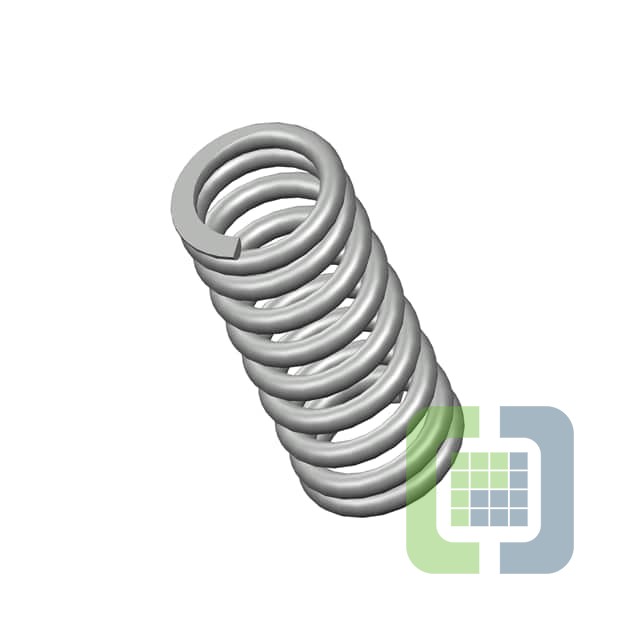

- DescriptionCOMP O= .562,L= 1.34,W= .082
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 228
Can ship immediately
Pricing:
- 1$2.9
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.082" (2.08mm)
- Diameter - Outside:0.562" (14.27mm)
- Diameter - Inside:0.398" (10.11mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.340" (34.04mm)
- Max Load:-
- Rate:78.0 lbs/in
- End Style:Closed & Ground
- Finish:None
