B1-63CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

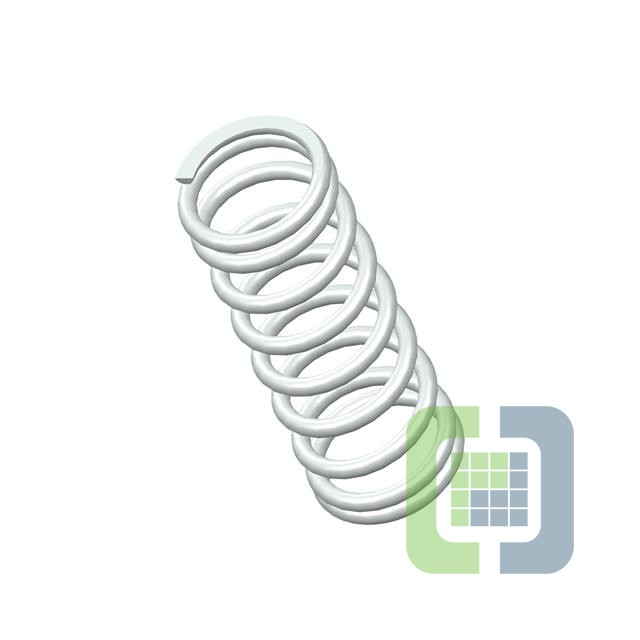

- DescriptionCOMP O= .360,L= 1.00,W= .042
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 408
Can ship immediately
Pricing:
- 1$2.91
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.042" (1.07mm)
- Diameter - Outside:0.360" (9.14mm)
- Diameter - Inside:0.276" (7.01mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.000" (25.40mm)
- Max Load:-
- Rate:18.0 lbs/in
- End Style:Closed & Ground
- Finish:None
