3787CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .500,L= 1.25,W= .045

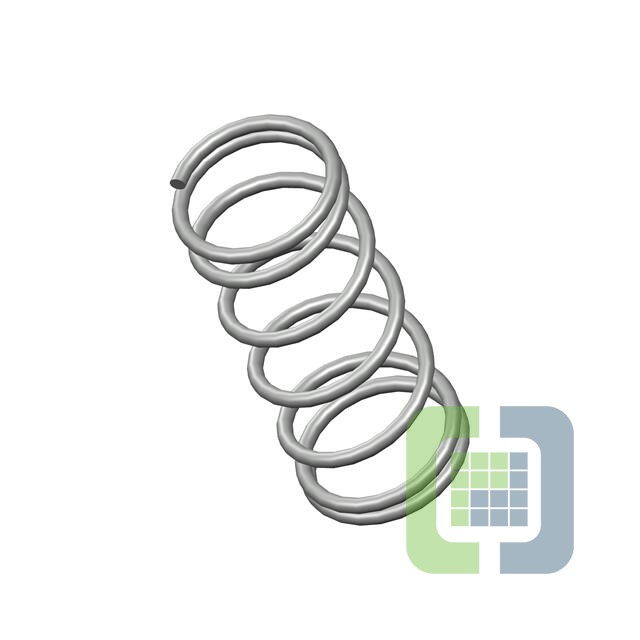

- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 452
Can ship immediately
Pricing:
- 1$3.02
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.045" (1.14mm)
- Diameter - Outside:0.500" (13.97mm)
- Diameter - Inside:0.410" (10.41mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.250" (31.75mm)
- Max Load:-
- Rate:13.0 lbs/in
- End Style:Closed
- Finish:Zinc
