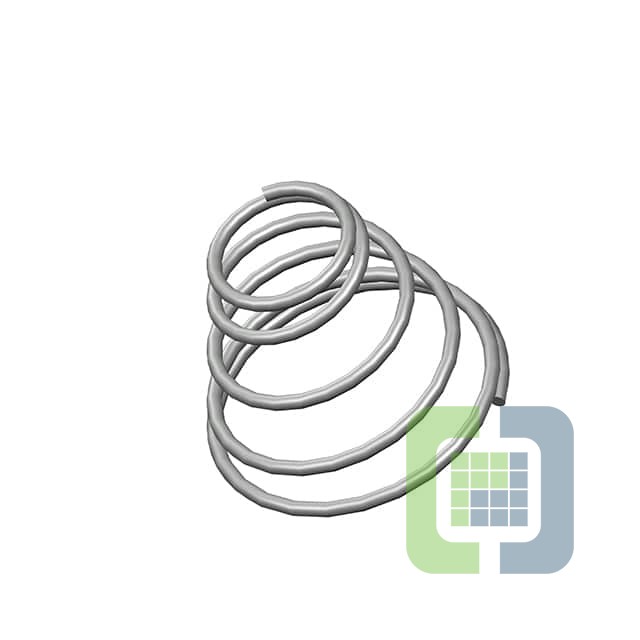

TA-2219CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLO= 1.031, SO= 0.5, W= 0.05
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,931
Can ship immediately
Pricing:
- 1$3.08
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.050" (1.27mm)
- Diameter - Outside:-
- Diameter - Inside:0.400" (10.16mm)
- Diameter - Small Outside:0.500" (12.70mm)
- Diameter - Large Outside:1.031" (26.19mm)
- Free Length:0.880" (22.35mm)
- Max Load:-
- Rate:8.2 lbs/in
- End Style:Closed
- Finish:Zinc
