11611CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

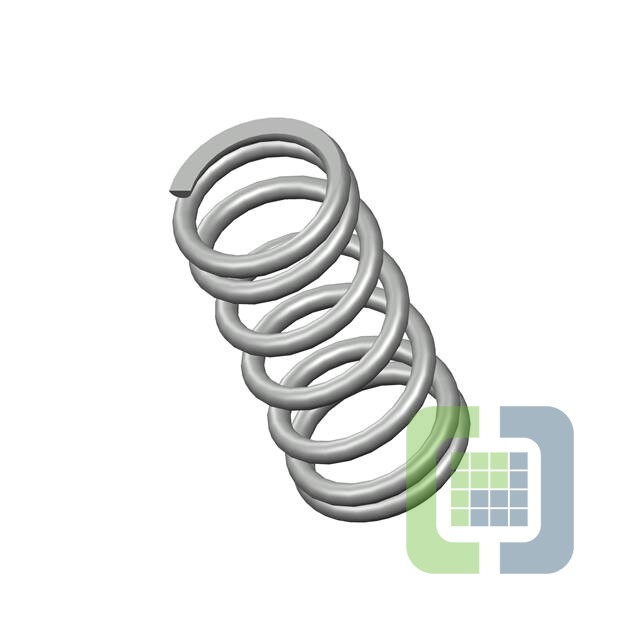

- DescriptionCOMP O= .687,L= 1.50,W= .085
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 550
Can ship immediately
Pricing:
- 1$3.17
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.085" (2.16mm)
- Diameter - Outside:0.687" (17.45mm)
- Diameter - Inside:0.517" (13.13mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.500" (38.10mm)
- Max Load:-
- Rate:69.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
