3840CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

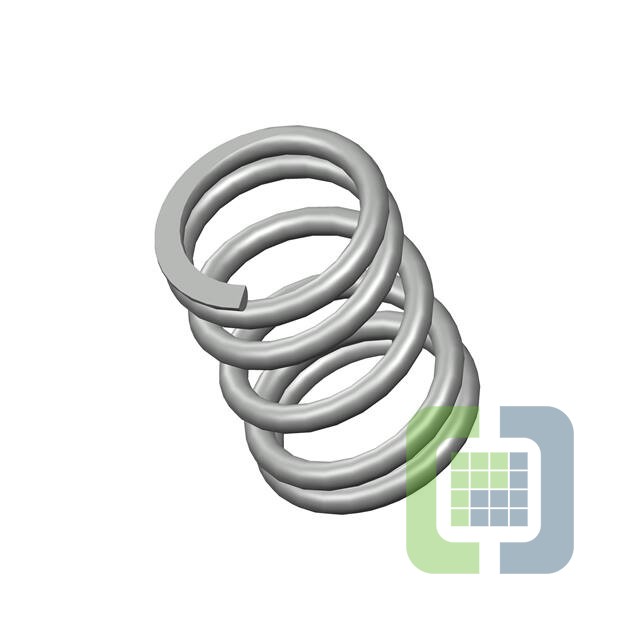

- DescriptionCOMP O= .593,L= .84,W= .072
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 261
Can ship immediately
Pricing:
- 1$3.17
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.072" (1.83mm)
- Diameter - Outside:0.593" (15.06mm)
- Diameter - Inside:0.449" (11.40mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.840" (21.34mm)
- Max Load:-
- Rate:78.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
