S-797CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

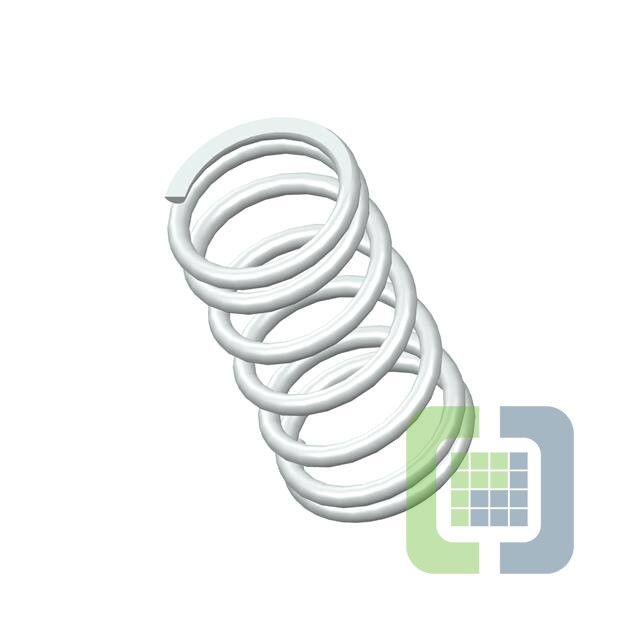

- DescriptionCOMP O= .328,L= .63,W= .035
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 391
Can ship immediately
Pricing:
- 1$3.22
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.035" (0.89mm)
- Diameter - Outside:0.328" (8.33mm)
- Diameter - Inside:0.258" (6.55mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.630" (16.00mm)
- Max Load:-
- Rate:15.0 lbs/in
- End Style:Closed & Ground
- Finish:None
