12249CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

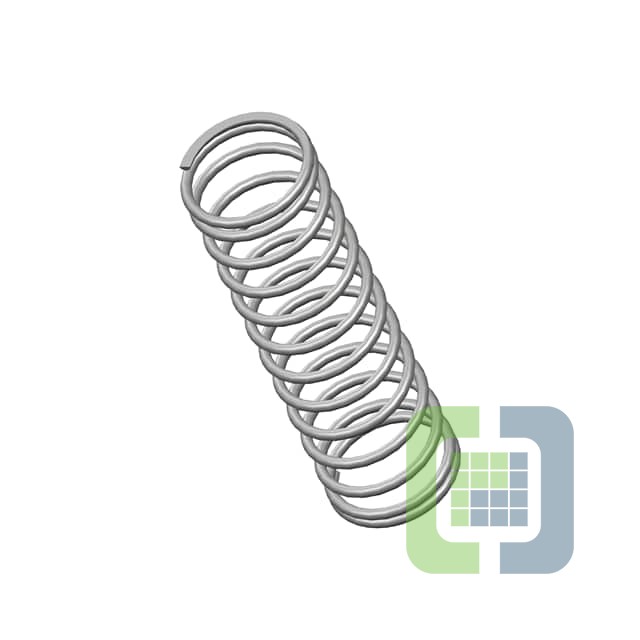

- DescriptionCOMP O= .578,L= 2.00,W= .0475
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 419
Can ship immediately
Pricing:
- 1$3.26
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.047" (1.19mm)
- Diameter - Outside:0.578" (14.68mm)
- Diameter - Inside:0.484" (12.29mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.000" (50.80mm)
- Max Load:-
- Rate:4.3 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
