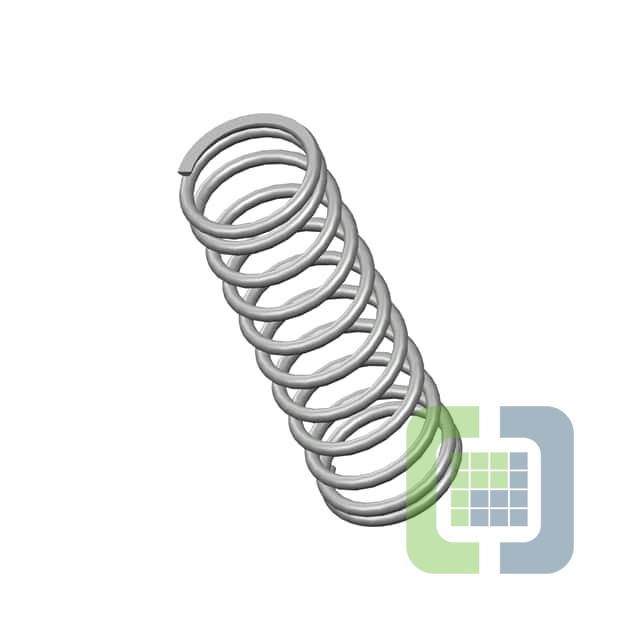

3130CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .656,L= 2.06,W= .063
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 2,016
Can ship immediately
Pricing:
- 1$3.28
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.063" (1.60mm)
- Diameter - Outside:0.656" (16.66mm)
- Diameter - Inside:0.530" (13.46mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.060" (52.32mm)
- Max Load:-
- Rate:12.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
