12224CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

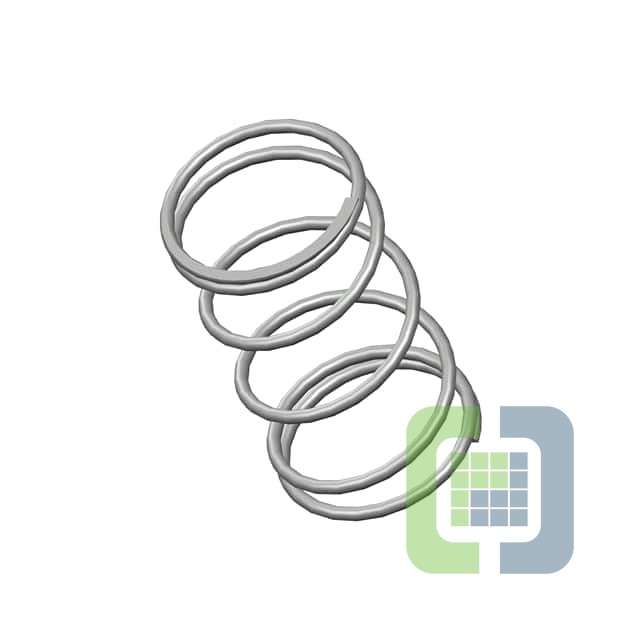

- DescriptionCOMP O= .750,L= 1.38,W= .050
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 635
Can ship immediately
Pricing:
- 1$3.3
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.050" (1.27mm)
- Diameter - Outside:0.750" (19.05mm)
- Diameter - Inside:0.650" (16.51mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.380" (35.05mm)
- Max Load:-
- Rate:6.5 lbs/in
- End Style:Closed & Ground
- Finish:None
