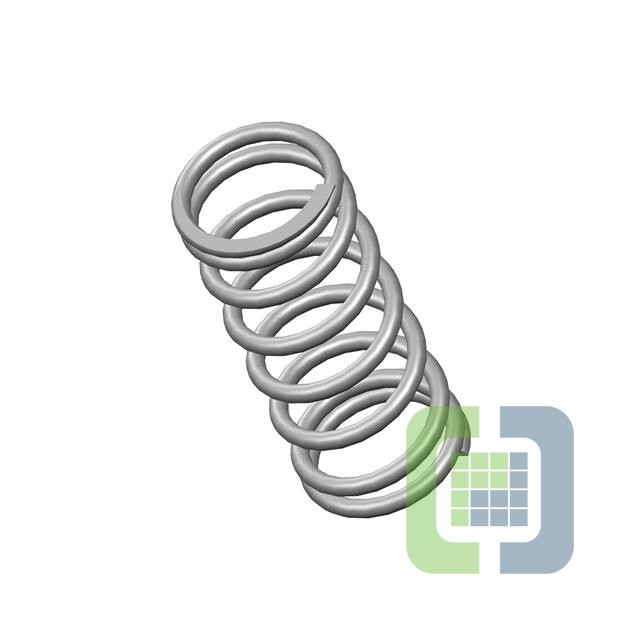

B1-68CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .531,L= 1.31,W= .058
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 589
Can ship immediately
Pricing:
- 1$3.34
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.058" (1.47mm)
- Diameter - Outside:0.531" (13.49mm)
- Diameter - Inside:0.415" (10.54mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.310" (33.27mm)
- Max Load:-
- Rate:26.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
