2592CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

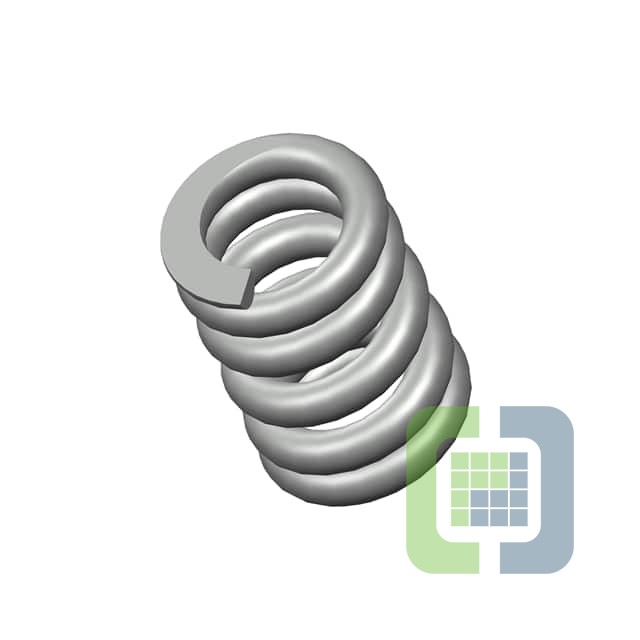

- DescriptionCOMP O= .531,L= .78,W= .1055
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 759
Can ship immediately
Pricing:
- 1$3.38
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.105" (2.67mm)
- Diameter - Outside:0.531" (13.49mm)
- Diameter - Inside:0.321" (8.15mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.780" (19.81mm)
- Max Load:22.0 lbs
- Rate:646.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
