B9-32CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

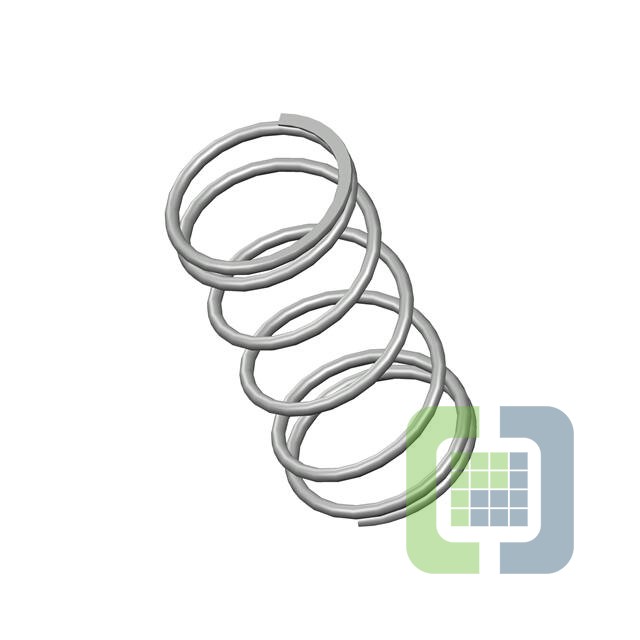

- DescriptionCOMP O= .546,L= 1.13,W= .039
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 509
Can ship immediately
Pricing:
- 1$3.38
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.039" (0.99mm)
- Diameter - Outside:0.546" (13.87mm)
- Diameter - Inside:0.468" (11.89mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.130" (28.70mm)
- Max Load:-
- Rate:5.7 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
