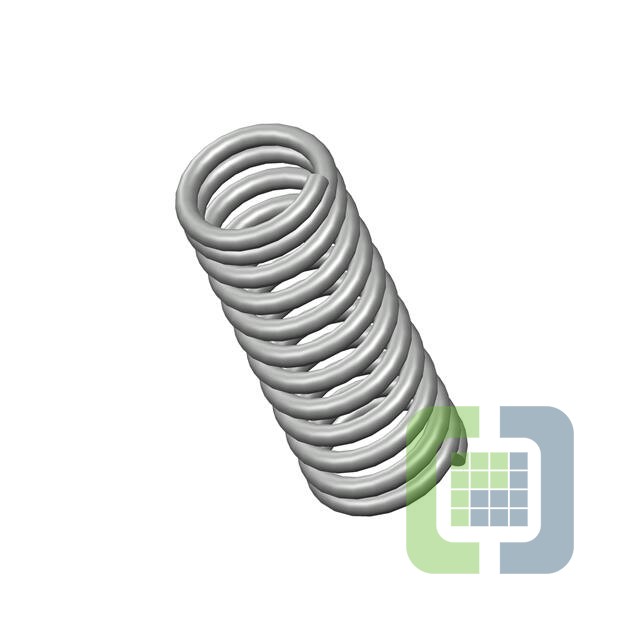

10468CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .687,L= 1.94,W= .092
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,301
Can ship immediately
Pricing:
- 1$3.44
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.092" (2.34mm)
- Diameter - Outside:0.687" (17.45mm)
- Diameter - Inside:0.503" (12.78mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.940" (49.28mm)
- Max Load:-
- Rate:49.0 lbs/in
- End Style:Closed
- Finish:Zinc
