TA-2259CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLO= 1.25, SO= 0.625, W= 0.03

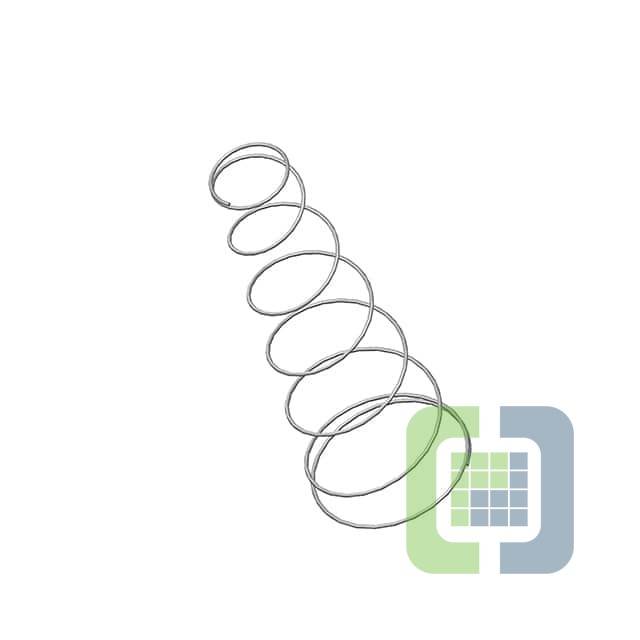

- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,709
Can ship immediately
Pricing:
- 1$3.49
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.030" (0.76mm)
- Diameter - Outside:-
- Diameter - Inside:0.570" (14.48mm)
- Diameter - Small Outside:0.625" (15.88mm)
- Diameter - Large Outside:1.250" (31.75mm)
- Free Length:3.500" (88.90mm)
- Max Load:-
- Rate:0.3 lbs/in
- End Style:Closed
- Finish:Zinc
