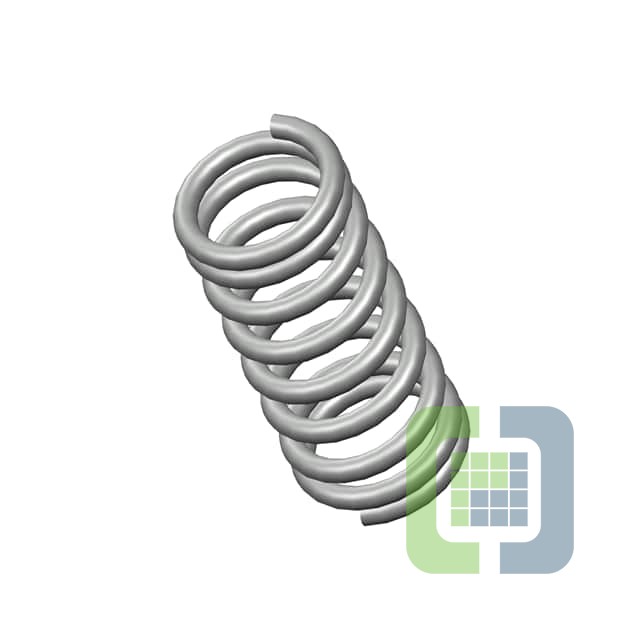

3228CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .593,L= 1.44,W= .080
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 244
Can ship immediately
Pricing:
- 1$3.51
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.080" (2.03mm)
- Diameter - Outside:0.593" (15.06mm)
- Diameter - Inside:0.433" (11.00mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.440" (36.58mm)
- Max Load:-
- Rate:67.0 lbs/in
- End Style:Closed
- Finish:Zinc
