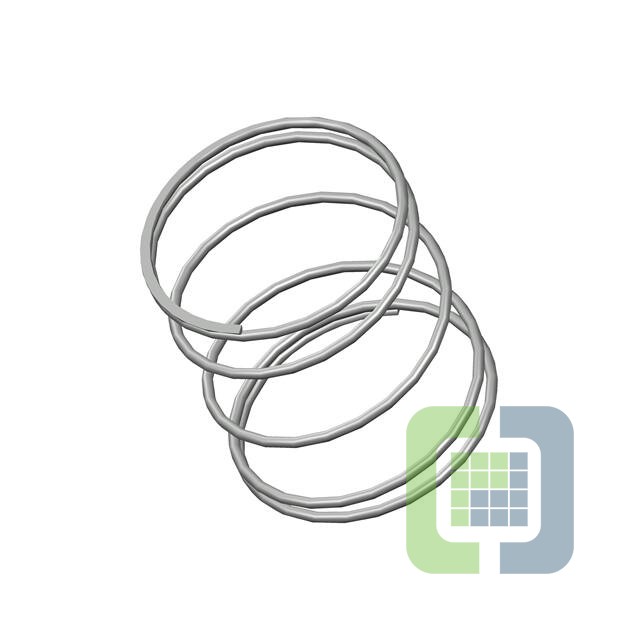

12318CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.078,L= 1.19,W= .043
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,464
Can ship immediately
Pricing:
- 1$3.65
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.043" (1.09mm)
- Diameter - Outside:1.078" (27.38mm)
- Diameter - Inside:0.992" (25.20mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.190" (30.23mm)
- Max Load:-
- Rate:1.3 lbs/in
- End Style:Closed
- Finish:Zinc
