916CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

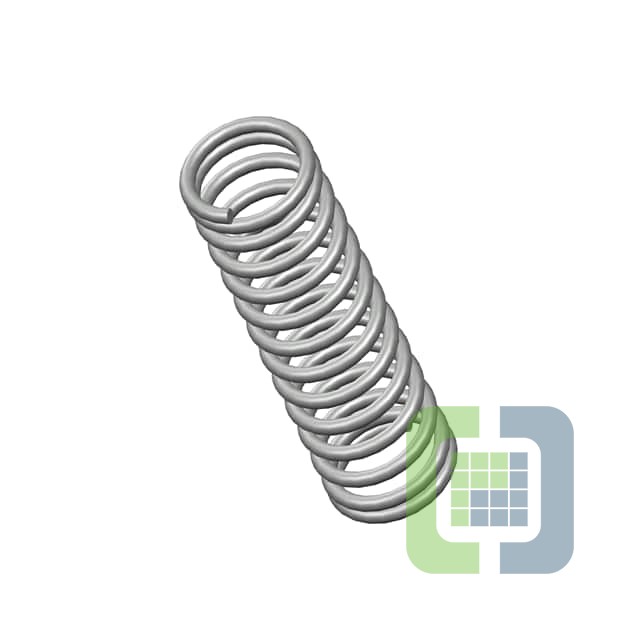

- DescriptionCOMP O= .625,L= 2.25,W= .072
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 793
Can ship immediately
Pricing:
- 1$3.69
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.072" (1.83mm)
- Diameter - Outside:0.625" (15.88mm)
- Diameter - Inside:0.481" (12.22mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.250" (57.15mm)
- Max Load:-
- Rate:20.0 lbs/in
- End Style:Closed
- Finish:Zinc
