TA-2169CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLO= 0.859, SO= 0.718, W= 0.04

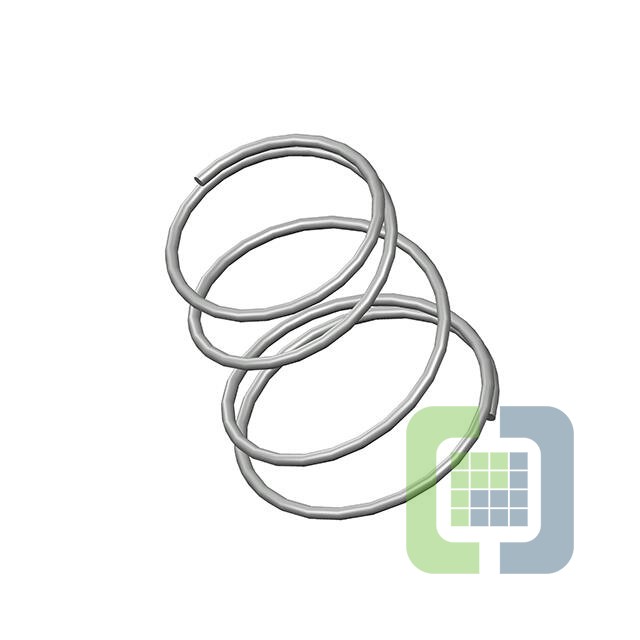

- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 418
Can ship immediately
Pricing:
- 1$3.73
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.040" (1.02mm)
- Diameter - Outside:-
- Diameter - Inside:0.640" (16.26mm)
- Diameter - Small Outside:0.718" (18.24mm)
- Diameter - Large Outside:0.859" (21.82mm)
- Free Length:1.000" (25.40mm)
- Max Load:-
- Rate:4.4 lbs/in
- End Style:Closed
- Finish:None
