10697CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

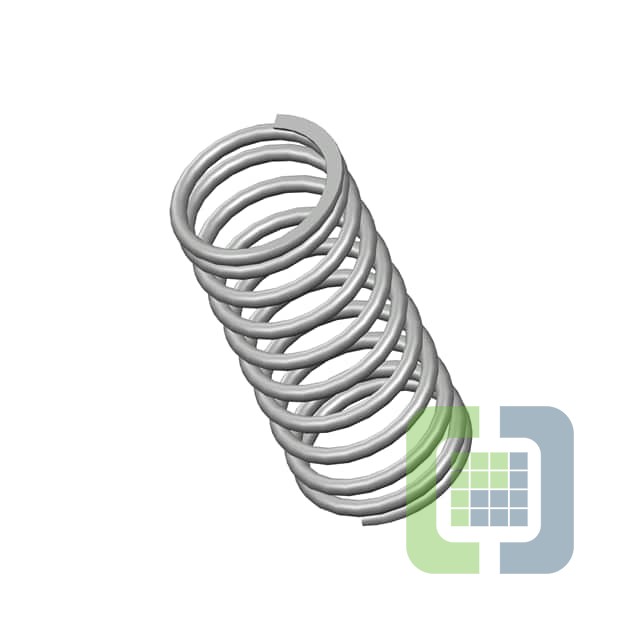

- DescriptionCOMP O=1.000,L= 2.31,W= .093
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 365
Can ship immediately
Pricing:
- 1$3.76
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.093" (2.36mm)
- Diameter - Outside:1.000" (25.40mm)
- Diameter - Inside:0.814" (20.68mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.310" (58.67mm)
- Max Load:-
- Rate:18.0 lbs/in
- End Style:Closed
- Finish:None
