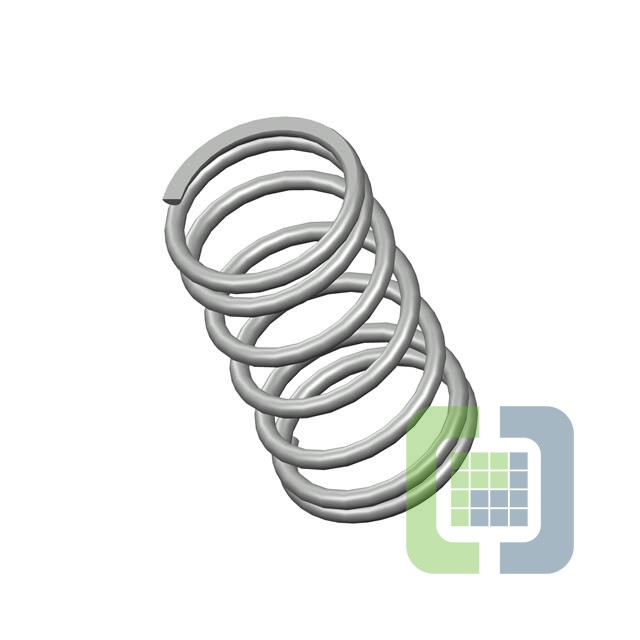

I-32CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .687,L= 1.25,W= .064
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 553
Can ship immediately
Pricing:
- 1$3.78
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.064" (1.63mm)
- Diameter - Outside:0.687" (17.45mm)
- Diameter - Inside:0.559" (14.20mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.250" (31.75mm)
- Max Load:-
- Rate:20.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
