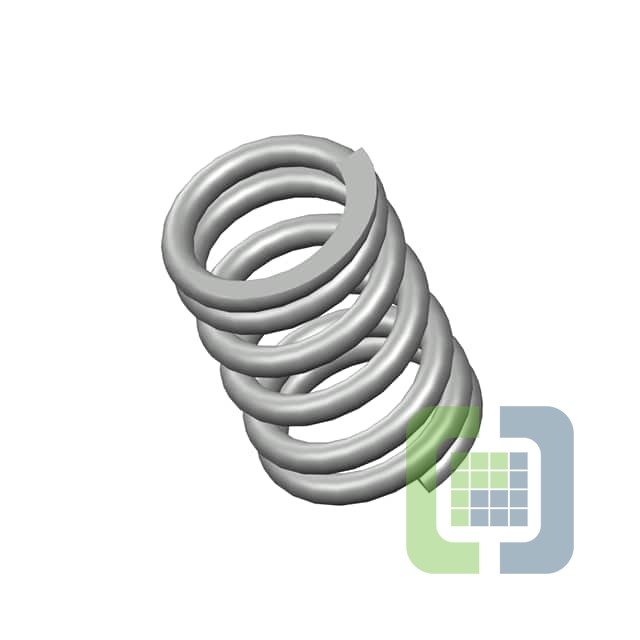

10471CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .703,L= 1.06,W= .098
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 555
Can ship immediately
Pricing:
- 1$3.83
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.098" (2.49mm)
- Diameter - Outside:0.703" (17.86mm)
- Diameter - Inside:0.507" (12.88mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.060" (26.92mm)
- Max Load:15.0 lbs
- Rate:141.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
