V-26CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

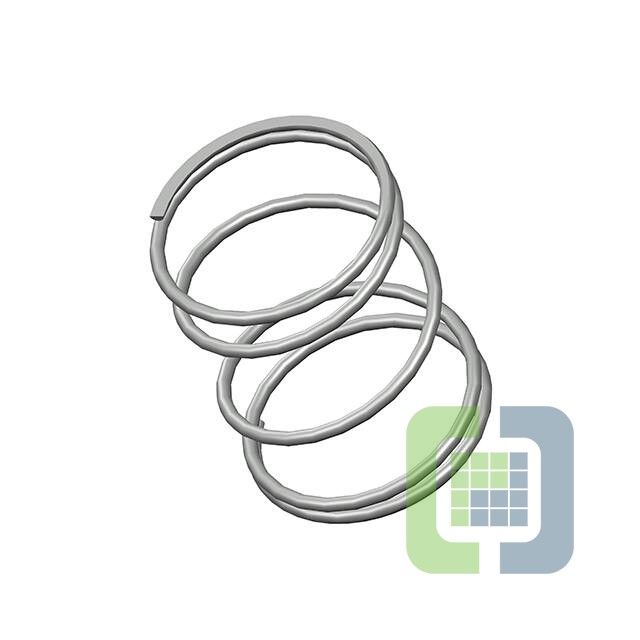

- DescriptionCOMP O= .734,L= .94,W= .042
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 316
Can ship immediately
Pricing:
- 1$3.92
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.042" (1.07mm)
- Diameter - Outside:0.734" (18.64mm)
- Diameter - Inside:0.650" (16.51mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.940" (23.88mm)
- Max Load:-
- Rate:4.5 lbs/in
- End Style:Closed
- Finish:Gold Iridite
