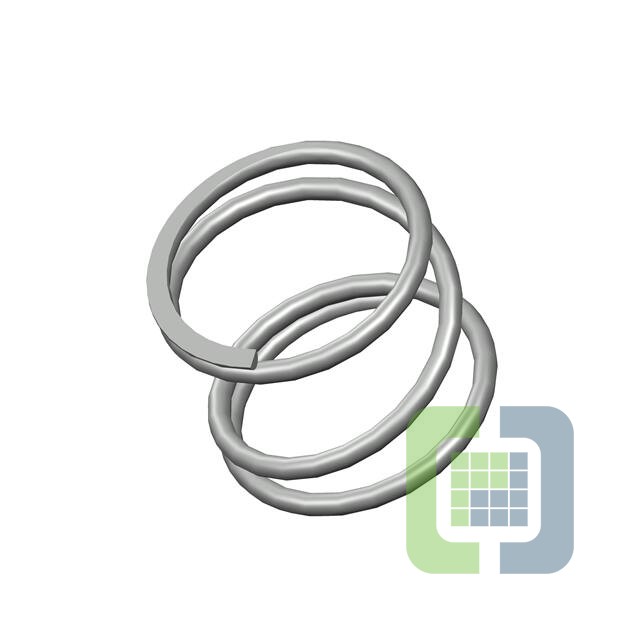

12495CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOD=1.234, L=1.031, W=0.097
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,433
Can ship immediately
Pricing:
- 1$3.94
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.097" (2.46mm)
- Diameter - Outside:1.234" (31.34mm)
- Diameter - Inside:1.040" (26.41mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.030" (26.16mm)
- Max Load:-
- Rate:58.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
