10514CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

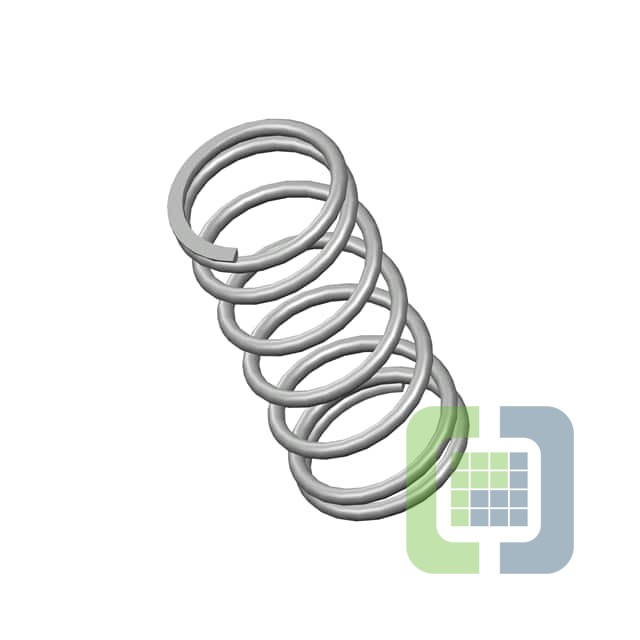

- DescriptionCOMP O= .938,L= 2.13,W= .085
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,545
Can ship immediately
Pricing:
- 1$3.96
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.085" (2.16mm)
- Diameter - Outside:0.938" (23.83mm)
- Diameter - Inside:0.766" (19.46mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.130" (54.10mm)
- Max Load:-
- Rate:23.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
