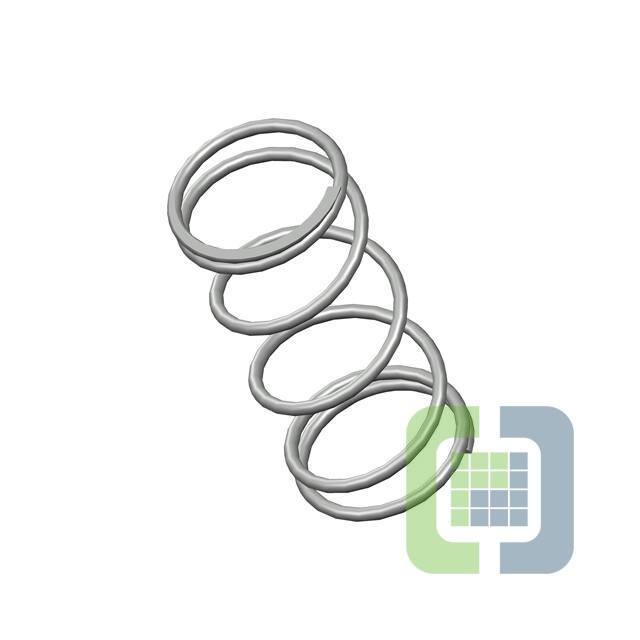

10395CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .984,L= 2.25,W= .075
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 323
Can ship immediately
Pricing:
- 1$4.1
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.075" (1.91mm)
- Diameter - Outside:0.984" (24.99mm)
- Diameter - Inside:0.834" (21.18mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.250" (57.15mm)
- Max Load:-
- Rate:15.0 lbs/in
- End Style:Closed
- Finish:Zinc
