12701CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

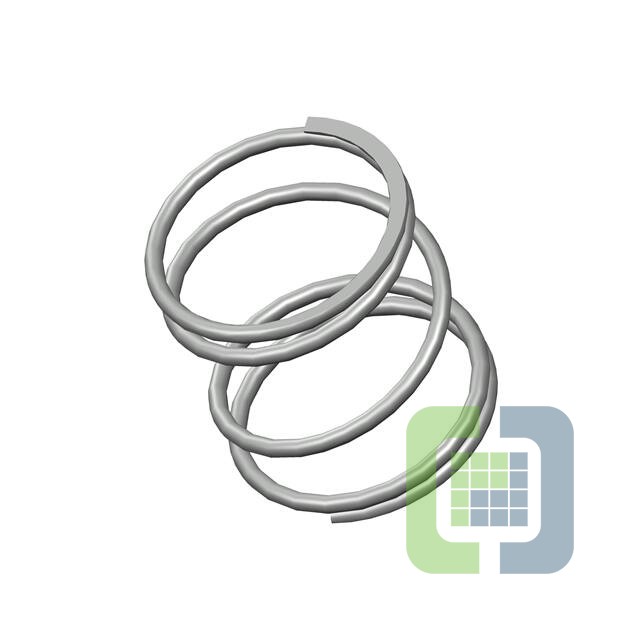

- DescriptionCOMP O=1.219,L= 1.31,W= .081
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 492
Can ship immediately
Pricing:
- 1$4.11
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.081" (2.06mm)
- Diameter - Outside:1.219" (30.96mm)
- Diameter - Inside:1.057" (26.85mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.310" (33.27mm)
- Max Load:-
- Rate:17.0 lbs/in
- End Style:Closed
- Finish:None
