2567CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

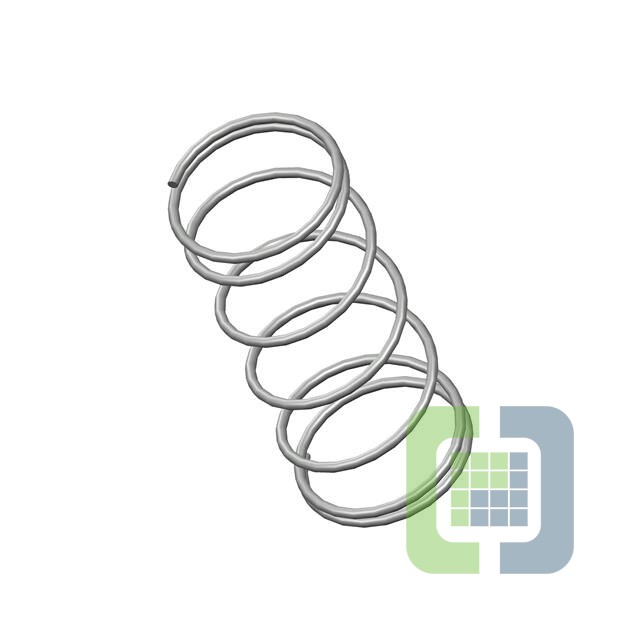

- DescriptionCOMP O=1.125,L= 2.69,W= .065
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 752
Can ship immediately
Pricing:
- 1$4.12
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.065" (1.65mm)
- Diameter - Outside:1.125" (28.58mm)
- Diameter - Inside:0.995" (25.27mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.690" (68.33mm)
- Max Load:-
- Rate:4.3 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
