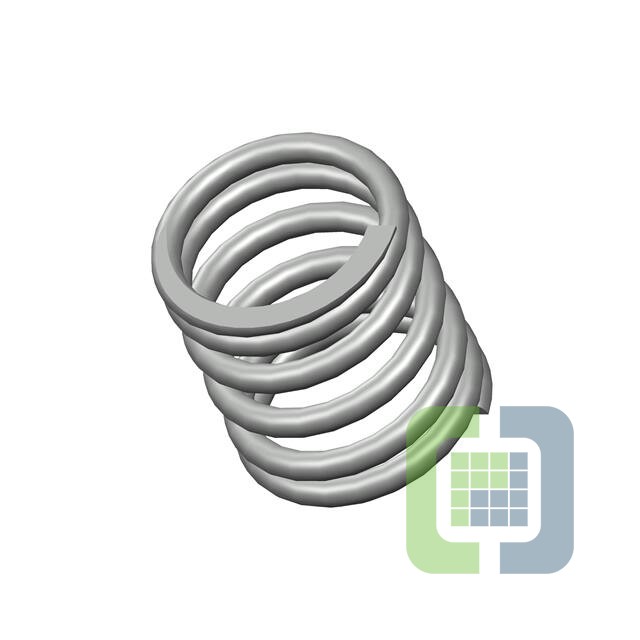

4184CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .875,L= 1.00,W= .100
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 814
Can ship immediately
Pricing:
- 1$4.19
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.100" (2.54mm)
- Diameter - Outside:0.875" (22.23mm)
- Diameter - Inside:0.675" (17.15mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.000" (25.40mm)
- Max Load:-
- Rate:77.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
