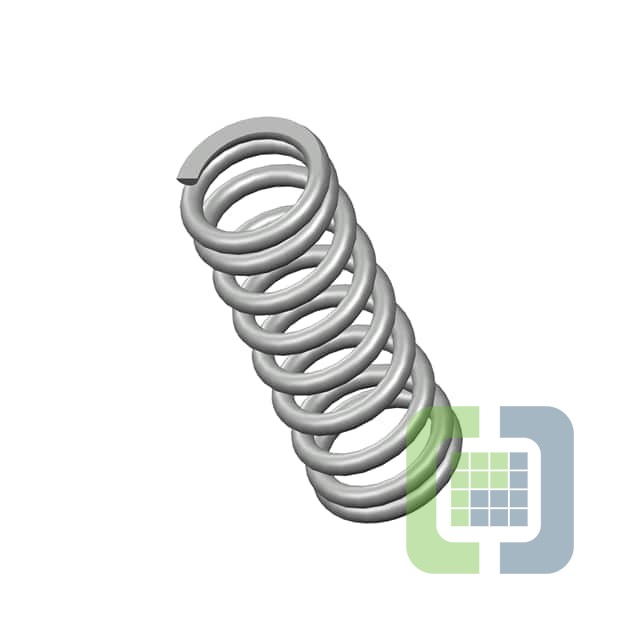

B5-27CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .234,L= .66,W= .033
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 244
Can ship immediately
Pricing:
- 1$4.23
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.033" (0.84mm)
- Diameter - Outside:0.234" (5.94mm)
- Diameter - Inside:0.168" (4.27mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.660" (16.76mm)
- Max Load:-
- Rate:30.0 lbs/in
- End Style:Closed & Ground
- Finish:None
