1717CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

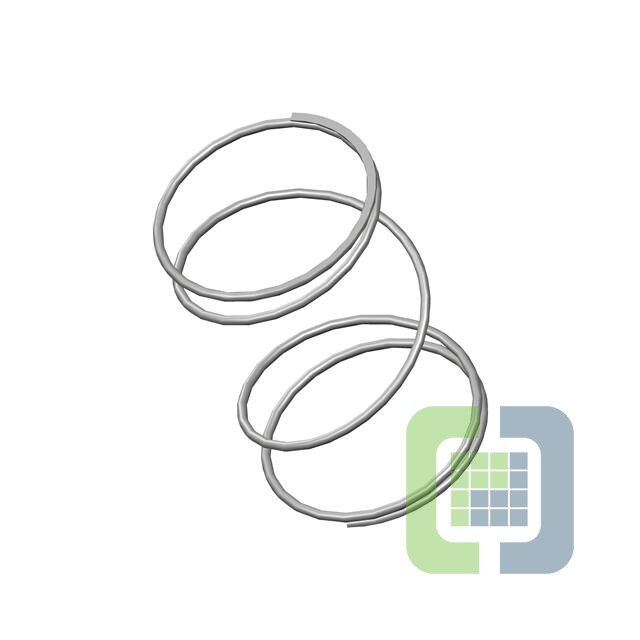

- DescriptionCOMP O=1.343,L= 2.09,W= .055
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 816
Can ship immediately
Pricing:
- 1$4.25
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.055" (1.40mm)
- Diameter - Outside:1.343" (34.11mm)
- Diameter - Inside:1.233" (31.32mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.090" (53.09mm)
- Max Load:-
- Rate:2.5 lbs/in
- End Style:Closed
- Finish:Zinc
